Solarix Prebuilt 8kw Powerboard With Deye Inverter

Description

Why the Solarix 8 kW Powerboard Is the Fast-Track to Energy Independence

Imagine unboxing a solar powerhouse that’s already engineered, wired and tested for you. That’s exactly what the Solarix Pre-Built 8 kW Powerboard with Deye Inverter delivers: a plug-and-play energy centre that slashes installation time while maxing out performance for homes and small businesses alike.

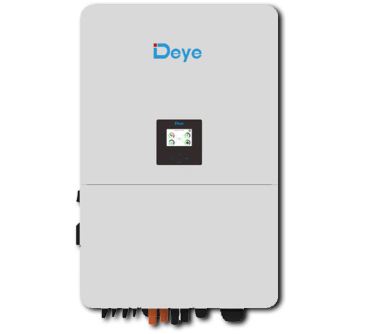

Built Around the Deye 8 kW Hybrid Inverter

At the heart of the board sits the legendary Deye 8 kW hybrid inverter—renowned for:

• 97.6 % CEC-weighted efficiency, squeezing every watt from your panels
• Dual MPPT inputs (22 A each) for east-west arrays or split orientations
• True 8 kW continuous output, 8.8 kW peak (60 s) for motor startups
• Uninterrupted EPS switching in <20 ms—computers stay on, lights don’t flicker

One Board, Two Operating Modes

Toggle between on-grid for net-metering savings or off-grid for total autonomy. The onboard smart relay automatically disconnects non-essential loads during outages, extending battery life while keeping critical circuits live.

Battery Freedom

Whether you already own lithium-ion packs or prefer tried-and-tested lead-acid, the Powerboard’s multi-chemistry battery interface adapts on the fly. A 150 A DC breaker and pre-programmed charging curves protect your investment and qualify most brands for warranty.

Peak Shaving & Load Management

Utility demand charges can kill ROI. The Solarix board uses AI-based forecasting to:

• Store cheap off-peak power
• Discharge during expensive peak windows
• Learn your consumption pattern and optimise automatically

Users report up to 40 % reduction in billed demand within the first quarter.

Real-Time Control, Wherever You Are

The 4-inch colour LCD touchscreen shows PV yield, battery SOC, grid import/export and load splits. Pair the board with your home Wi-Fi and the free Solarix Cloud app (iOS/Android) to:

• Push alerts for low battery or grid loss
• Update firmware over the air
• Export data for tax incentives or feed-in tariff claims

IP65—Built for African Conditions

A powder-coated aluminium back-plate, UV-stable polycarbonate cover and sealed cable glands shrug off dust, rain and insects. Mount it outdoors in direct sun; internal fan cooling keeps components within spec up to 50 °C ambient.

Installation in Under 90 Minutes

Arriving on a single pallet, the Powerboard is pre-wired to Australian/NZS 5033 standards. A qualified electrician only needs to:

1. Bolt the enclosure to the wall
2. Land AC grid, AC loads and battery cables into clearly labelled glands
3. Connect PV strings to the MC4 pairs
4. Power up and run the quick-start wizard

No spaghetti junction boxes, no separate surge protectors—everything is integrated.

Typical Performance Snapshot

• Max PV array power: 10.4 kW (oversizing allowed)
• Max charge/discharge: 190 A @ 48 V
• EPS output: 8 kW @ 230 V, 32 A per phase
• Transfer time: <20 ms
• Standby loss: <15 W

Who Should Buy This Board?

• Homeowners who want a fast, warranty-backed solar-plus-storage system
• Contractors needing a repeatable, quality-controlled installation
• Small offices, lodges or shops that experience frequent load-shedding
• Anyone who values local support and firmware updates

What’s in the Box?

• 1× Solarix powder-coated steel board with Deye 8 kW hybrid inverter pre-mounted
• 2× 63 A DC breakers, 1× 150 A battery breaker, 2× surge arresters
• 1× 4G Wi-Fi antenna, 1× CT set for grid monitoring
• 1× Quick-start guide, compliance certificate and warranty card

Peace-of-Mind Warranty

The Deye inverter carries a standard 5-year warranty, extendable to 10 years at no extra cost when registered online within 30 days. The Powerboard workmanship is guaranteed for 24 months.

Stop piecing components together. Order the Solarix Pre-Built 8 kW Powerboard with Deye Inverter today and power up tomorrow—cleaner, smarter, faster.
