Unique 2×3 Hdmi Video Wall Controller

Description

Product Overview

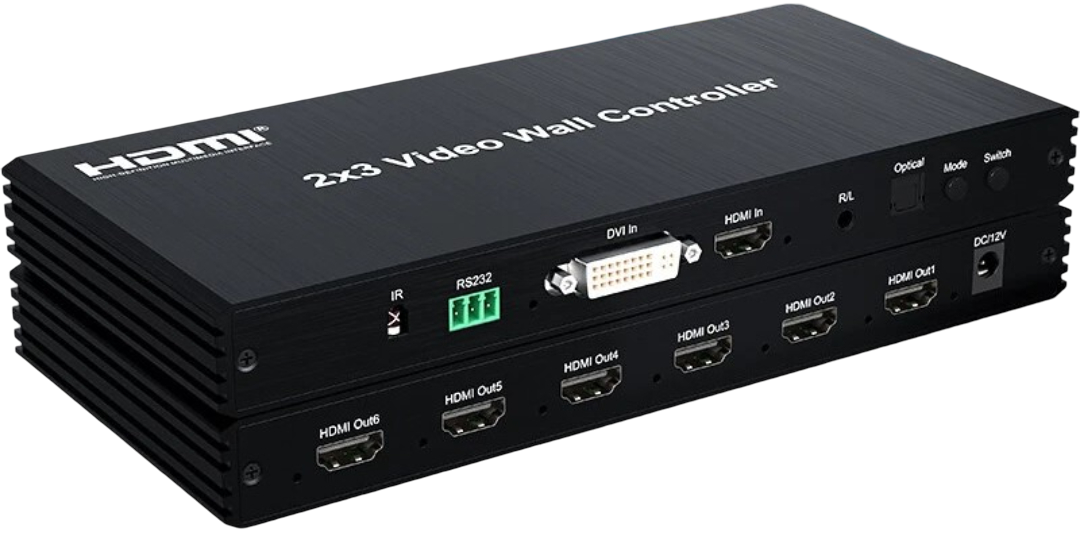

The UniQue 2×3 Video Wall Controller is designed to provide efficient video distribution with its HDMI/DVI input and six HDMI outputs, supporting full HD 1080P resolution at 60Hz. It offers multiple splicing modes, power-off memory, and easy plug-and-play operation with RS232/IR control.

Key Features

This video wall controller supports a variety of features, including:

• Support for HDMI/DVI video source input
• 6-way HDMI output for flexible video distribution
• Power-off memory function for convenient operation
• Multiple splicing modes for easy handling and plug-and-play functionality
• RS232/IR control for seamless command and control

Technical Specifications

The UniQue 2×3 Video Wall Controller boasts the following technical specifications:

• HDMI input resolution: 1080P/720P/576p/576i/480P
• HDMI output resolution: 1920×1080/60Hz
• Supported video formats: RGB, YCbCr444, YCbCr442, YCbCr440
• Supported audio formats: Stereo
• Max bandwidth: 4.95Gbit/s (1080P)
• Maximum transfer rate: 3.96Gbit/s (1080P)
• Input/output cable length: ≤15M, AWG26 HDMI standard cable
• Max working current: 280mA
• Power adapter specifications: input AC (50Hz, 60Hz) 100V-240V Output 12V DC/1A
• Operating temperature range: (-10℃～ +45℃)
