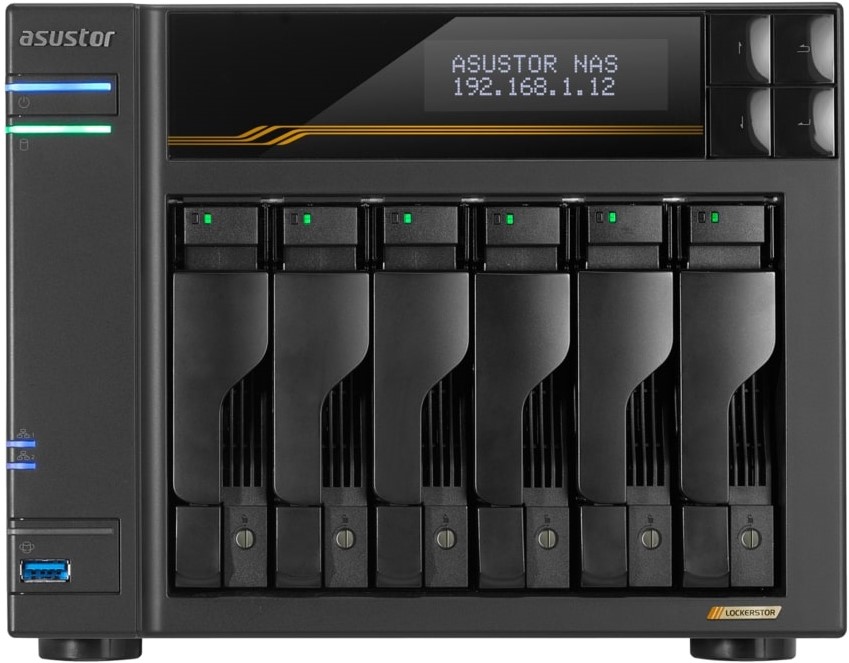

Asustor Lockerstor 6 Gen 3 Nas Enclosure

Description

Unlock Next-Level Storage Performance

The Asustor Lockerstor 6 Gen 3 NAS enclosure shatters bottlenecks for small businesses, videographers and virtualization enthusiasts. Built around a quad-core AMD Ryzen Embedded V3C14 processor that bursts to 3.8 GHz, the Lockerstor delivers up to 60% faster multi-threaded performance than previous generations. Combined with 16 GB of server-grade ECC DDR5-4800 memory (expandable to 64 GB), the system guarantees rock-solid reliability during intensive 4K/8K video editing, database transactions or virtual-machine hosting.

Quad M.2 PCIe 4.0—Double the Bandwidth

Four M.2 2280 NVMe slots connected via PCIe 4.0 x1 deliver twice the throughput of PCIe 3.0, letting you create blistering fast SSD pools for caching or primary storage. Mix high-capacity SATA HDDs in the six hot-swappable bays and achieve hybrid-tiered storage that automatically accelerates frequently accessed files.

Enterprise-Grade Connectivity

Dual 10-Gigabit Ethernet ports provide up to 20 Gbps of combined throughput—perfect for multi-user 4K video workflows or lightning-fast backups. Dual 5-Gigabit Ethernet adds link-aggregation flexibility, while Wake-on-LAN/WAN keeps the unit accessible yet power-efficient. Need even more speed? A dedicated PCIe slot accepts an optional 10/25 GbE card for future growth.

USB4 & USB 3.2 Gen 2—Transfer at Warp Speed

Two USB4 ports (40 Gbps) and three USB 3.2 Gen 2 Type-A ports (10 Gbps) let you ingest terabytes of footage from external NVMe drives in minutes. DAS mode support turns the Lockerstor into a direct-attached super-drive for on-location edits.

Future-Proof Security

ASUSTOR’s ADM operating system integrates PQC (Post-Quantum Cryptography) hybrid TLS encryption, protecting sensitive client data against tomorrow’s quantum threats. AES-256 volume encryption, firewall, VPN server and two-factor authentication complete the enterprise security stack.

Effortless Scalability

Start with six drives and scale up to 18 bays using ASUSTOR expansion units. Online RAID migration and capacity expansion mean zero downtime while your data grows. BTRFS snapshots guard against ransomware, offering point-in-time recovery with minimal overhead.

Quiet, Cool, Continuous

A whisper-quiet 120 mm fan and intelligent speed control keep noise as low as 18.1 dB—ideal for home studios or office desks. The Lockerstor operates reliably from 0–40 °C and automatically powers down drives after idle periods, cutting power draw to just 2.3 W in sleep mode.

3-Year Warranty & World-Class Support

ASUSTOR backs the Lockerstor 6 Gen 3 with a 36-month warranty, free tech support and frequent ADM updates, ensuring your investment is protected for years to come.

Ideal Uses

• 4K/8K video editing & color grading
• Virtual-machine and Docker container hosting
• Photography RAW archive with instant previews
• Surveillance server for up to 128 IP cameras
• Multi-user file server for creative agencies
• Private cloud with mobile, web and desktop sync
