Solarix Ultra Power 48v 20a Lithium Ion Phosphate Battery Charger

Description

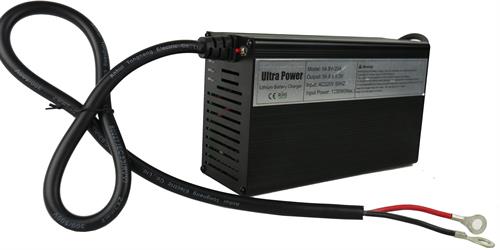

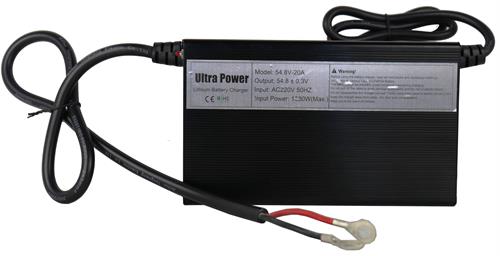

Introduction to the Solarix Ultra Power 48V 20A Lithium Ion Phosphate Battery Charger

The Solarix Ultra Power 48V 20A Lithium Ion Phosphate Battery Charger is designed to optimize the performance and lifespan of Lithium Ion Phosphate (LiFePO4) batteries, safely achieving a 100% State of Charge. This charger operates from mains AC 220-240V, supplying up to 20A charging output suitable for nominal 48V LiFePO4 battery banks.

Key Features and Benefits

The charger's built-in protection technology provides protection against Over Voltage and Over Current output, Short Circuit, making it very safe to use. With an energy efficiency of >85%, the charger produces less heat, delivers more energy, and allows faster charging in less than 2 hours. The lightweight aluminum casing is equipped with an active ventilation fan system, allowing the charger to be used in harsh environments or hot climates.

Technical Specifications

• Input Voltage: 220VAC – 240VAC
• Output Power: 1000W (1380W Maximum Output)
• Constant Charge Voltage: 58.1VDC – 58.7VDC
• Constant Current: 20A
• Charge Complete Current: 1.2A – 1.8A
• Power Efficiency: >85% at full load
• Color: Black
• Dimensions: 210mm x 125mm x 70mm
• Weight: 3.0Kg
